Multi-functional payload-capable drone

Introduction

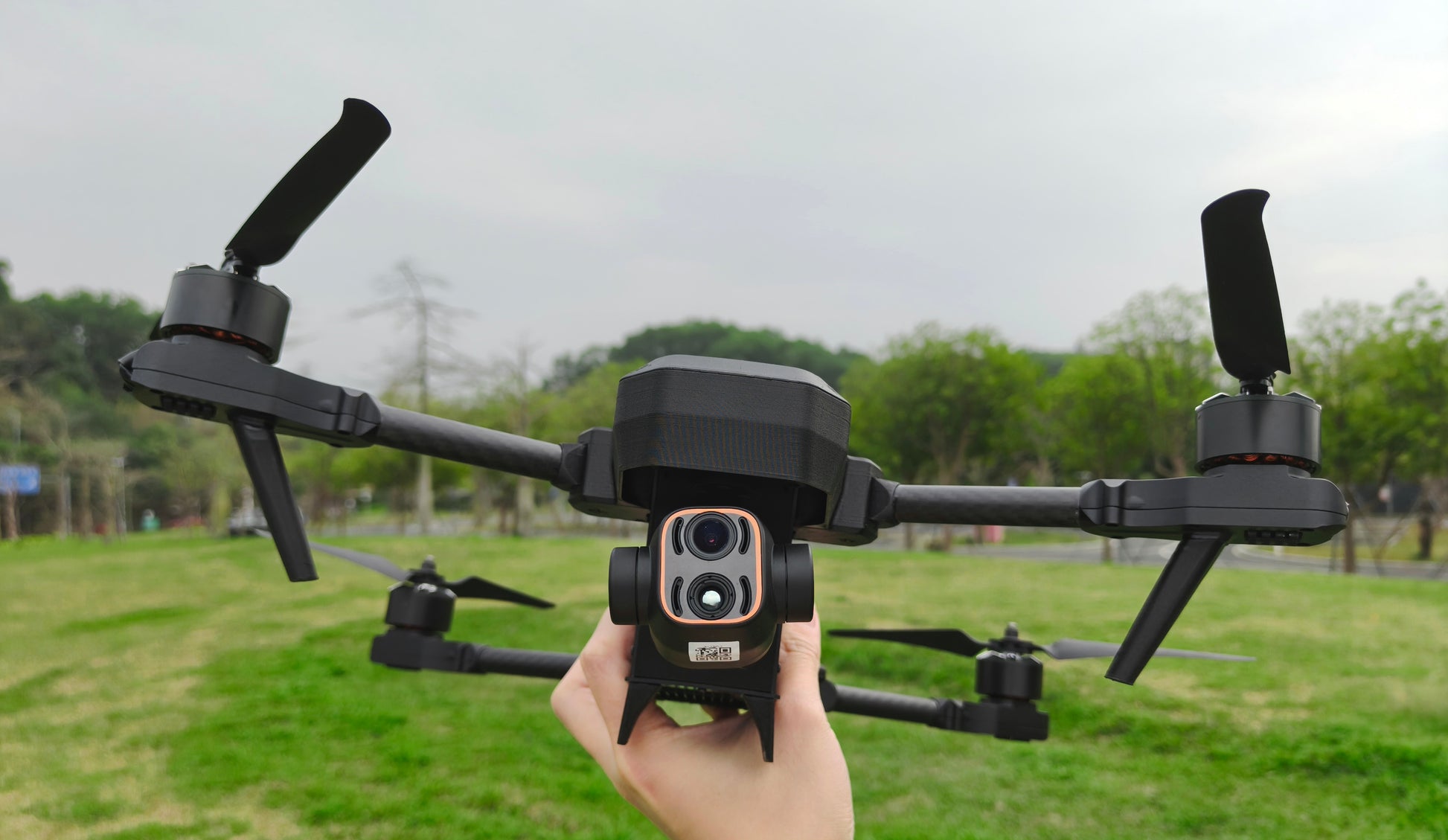

• Product Name: Q10S
• Description: Multi-functional payload-capable drone

Q10S PARAMETERS

• Overall unfolded dimensions (including propellers)：595mm×544mm×143mm
• Folded dimensions：267mm×149mm×144.5mm
• Diagonal wheelbase：445mm
• Standard takeoff weight：2KG
• Maximum payload capacity：≥3Kg
• Maximum flight speed：35m/s

• Maximum climb speed：Positioning mode: 8 m/s Attitude mode: 30 m/s
• Maximum descent speed：Positioning mode: 5 m/s
• Maximum flight time：≥41min(no payload)  ≥10min(with 3 kg payload)

• Wind resistance rating：12m/s（Level 6）

• Maximum remote control range：15 km (with no interference or obstruction)

• Communication frequency band：Standard dual-band 2.4G/5.8G (customizable)

• AI-powered object recognition and tracking：Supported

• Autonomous waypoint flight capability：Supported

• Payload attachment：Supports multiple payload configurations – customizable

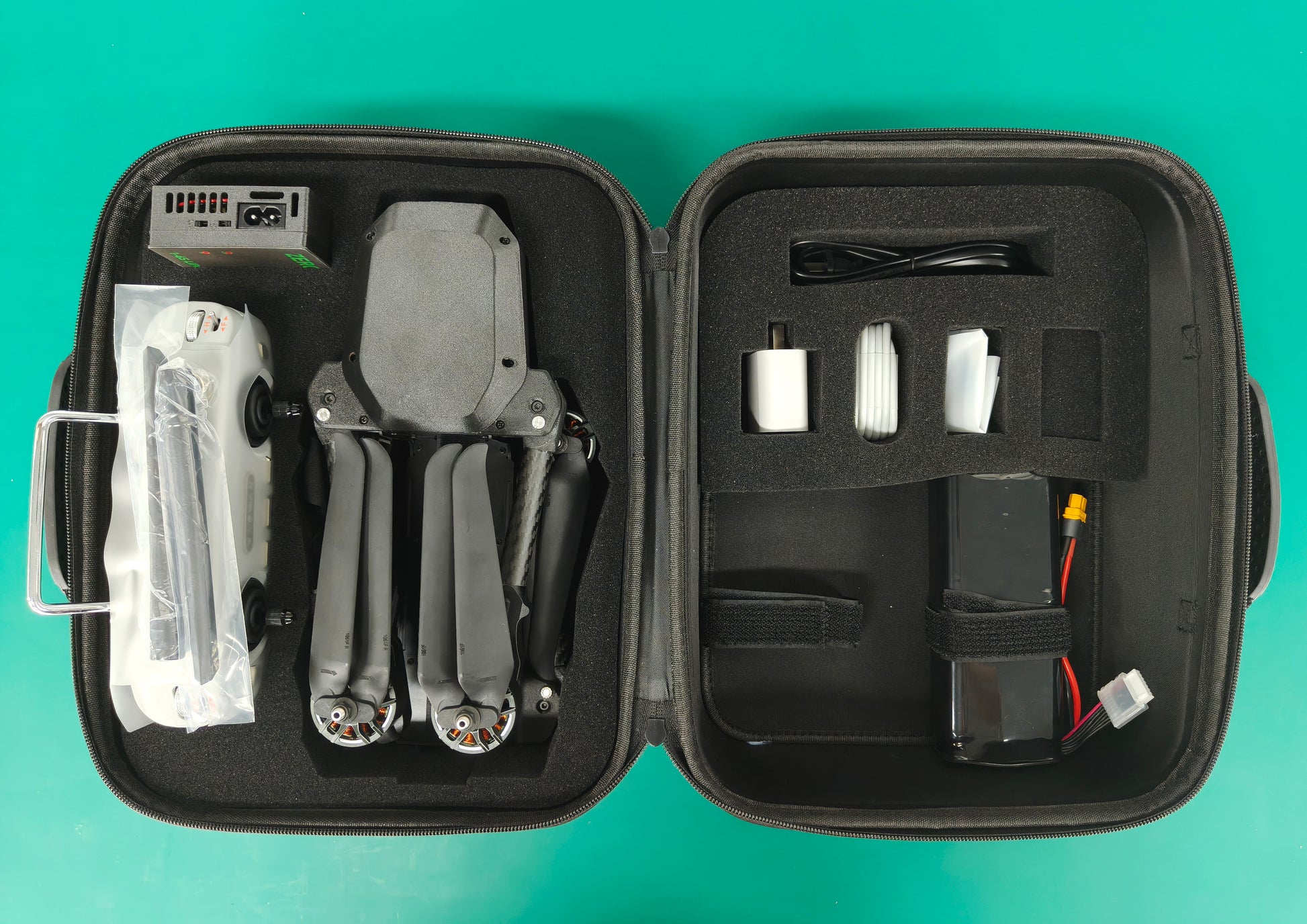

• Storage method：Quick-folding mechanism

• Expansion interface：Power supply: 12V/3A ×1, 5V/5A ×1
Interfaces: CAN ×1, UART ×2, I²C ×1, ADC ×1, PWM ×4

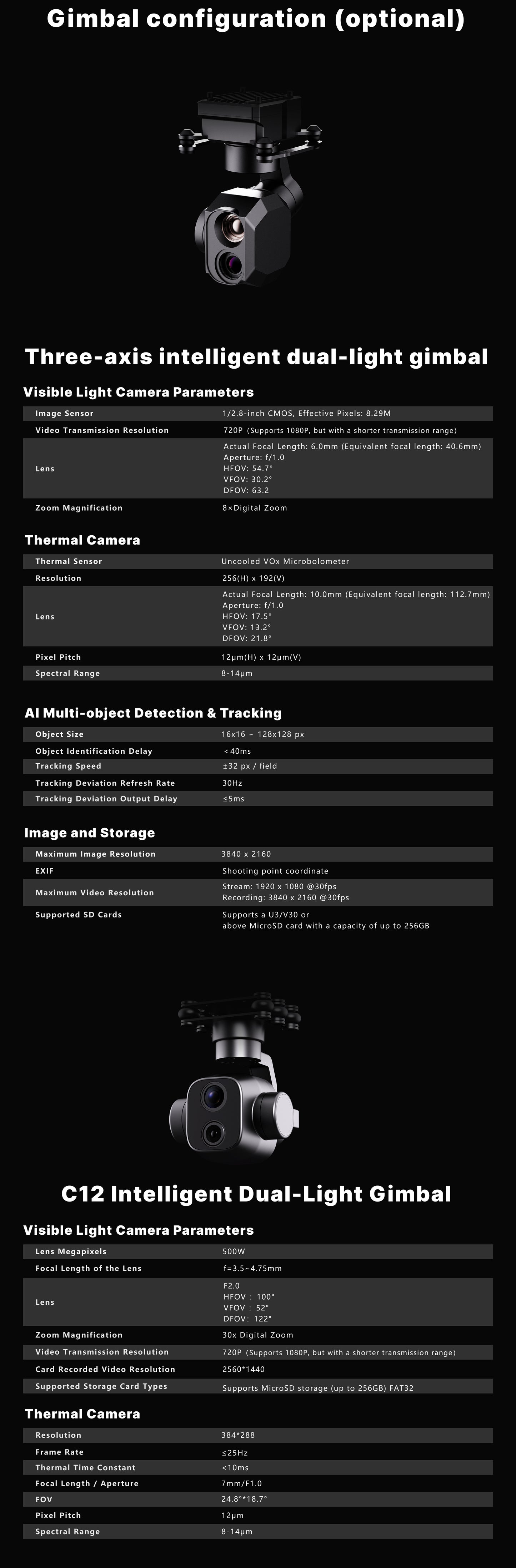

Gimbal configuration (optional)

Three-axis intelligent dual-light gimbal

• Image Sensor：1/2.8-inch CMOS, Effective Pixels: 8.29M
• Video Transmission Resolution：720P（Supports 1080P, but with a shorter transmission range）
• Lens：Actual Focal Length: 6.0mm (Equivalent focal length: 40.6mm)
  Aperture: f/1.0
  HFOV: 54.7°
  VFOV: 30.2°
  DFOV: 63.2
• Zoom Magnification：8×Digital Zoom
• Thermal Sensor：Uncooled VOx Microbolometer
• Resolution：256(H) x 192(V)
• Lens：Actual Focal Length: 10.0mm (Equivalent focal length: 112.7mm)
  Aperture: f/1.0
  HFOV: 17.5°
  VFOV: 13.2°
  DFOV: 21.8°
• Pixel Pitch：12μm(H) x 12μm(V)
• Spectral Range：8-14μm

AI Multi-object Detection & Tracking

• Object Size：16x16 ~ 128x128 px
• Object Identification Delay：＜40ms
• Tracking Speed：±32 px / field
• Tracking Deviation Refresh Rate：30Hz
• Tracking Deviation Output Delay：≤5ms

Image and Storage

• Maximum Image Resolution：3840 x 2160
• EXIF：Shooting point coordinate
• Maximum Video Resolution：Stream: 1920 x 1080 @30fps
  Recording: 3840 x 2160 @30fps
• Supported SD Cards：Supports a U3/V30 or
  above MicroSD card with a capacity of up to 256GB

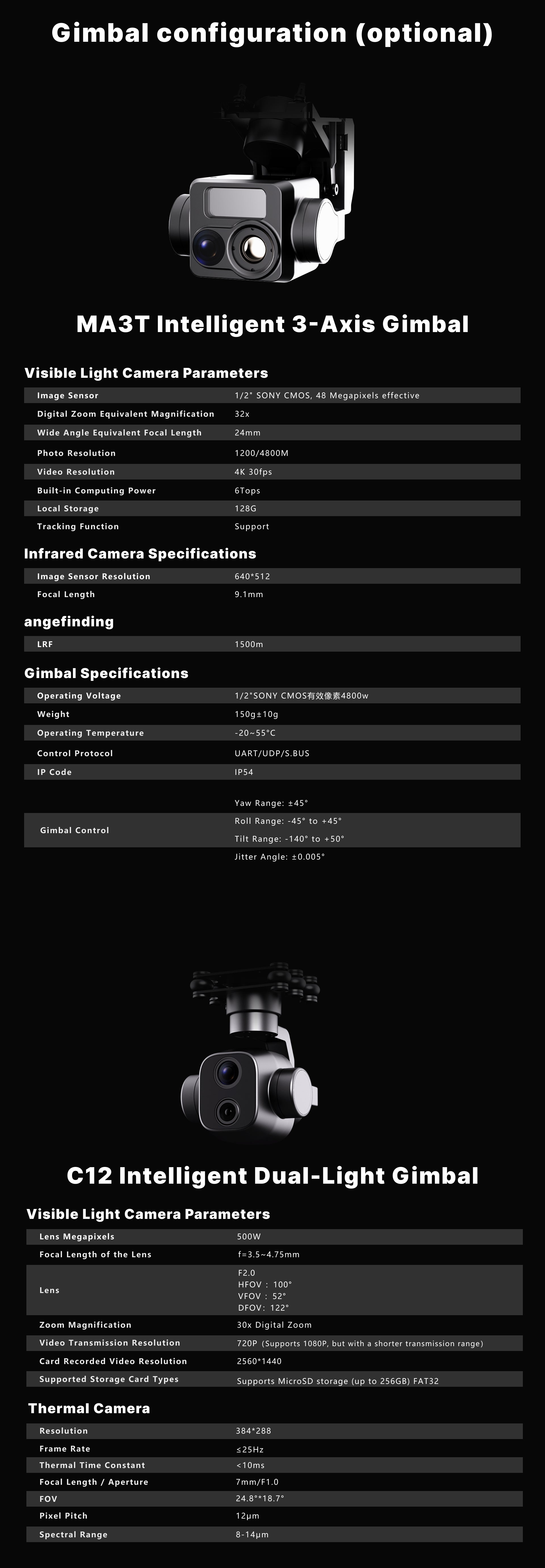

C12 Intelligent Dual-Light Gimbal

Visible Light Camera Parameters

• Lens Megapixels：500W
• Focal Length of the Lens：f=3.5~4.75mm
• Lens：F2.0
  HFOV ：100°
  VFOV ：52°
  DFOV：122°
• Zoom Magnification：30x Digital Zoom
• Video Transmission Resolution：720P（Supports 1080P, but with a shorter transmission range）
• Card Recorded Video Resolution：2560*1440
• Supported Storage Card Types：Supports MicroSD storage (up to 256GB) FAT32

Thermal Camera

• Resolution：384*288
• Frame Rate：≤25Hz
• Thermal Time Constant：<10ms
• Focal Length / Aperture：7mm/F1.0
• FOV：24.8°*18.7°
• Pixel Pitch：12μm
• Spectral Range：8-14μm
