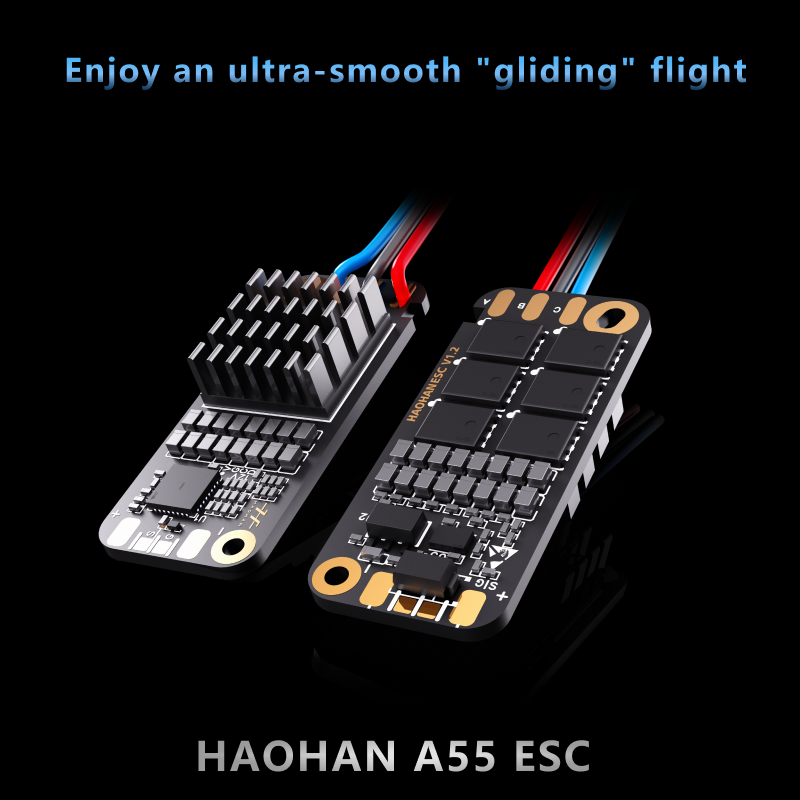

HAOHAN-A55ESC

HAOHAN A55 Brushless ESC: Silky Smooth Response · Mighty Mini · Cool & Enduring

Key Selling Points:

1. ⚡ Lightning-Fast & Silky Smooth Response:

   • 120MHz Dedicated Motor MCU. Signal processing swift as lightning, near-zero latency response. Control flows like silk.

2. 🛡️ Slimmed-Down, Rock-Solid Stability:

   • 32-Piece SMD Ceramic Capacitor Array. Ultra-Low ESR, close-to-MOS placement.
   • Powerful Filtration, precisely suppresses voltage spikes & noise. System stability unshakable.

3. 💥 Mini Body, Max Power:

   • Just 17×40mm!
   • 55A Continuous / 70A Peak (10s) output. Reliability ensured by 6-Layer Gold-Plated PCB.

4. ❄️ Superior Cooling, Enduring Cool:

   • Finned Aluminum Heatsink + FireFly Tech.
   • Full throttle level flight, stays cool! – “We Outlast Your Motor!”
5. Specifications:
   Product Name: HAOHAN A55 ESC (Electronic Speed Controller)
   Protocol: Dshot 300, Dshot 600, PWM, etc.
   Telemetry Function: Not supported
   Bus-powered, built-in BEC
   Color: Black
   Firmware: AM32
   MCU: Up to 120MHz main frequency
   Core: ARM Cortex-M4
   Memory: Supports up to 64KB Flash and 16KB SRAM
   Operating Temperature: -40°C to 60°C
   Continuous Current: 55A (with good heat dissipation)
   Burst Current: 70A (10 seconds)
   Peak Power: 2kW
   Rated Operating Voltage: 12.5V - 27V (4-6S LiPo battery)
   PCB: 6-layer immersion gold board with high copper thickness on both inner and outer layers
   Dimensions: 17mm × 40mm
   Applicable for: FPV drones, fixed-wing aircraft, boat models, car models, etc.

Choose A55, Experience: Ultimate Control Response · Pure Stable Power · Compact High Energy · Cool Enduring Performance

Unlock Flight Potential with HAOHAN A55!
